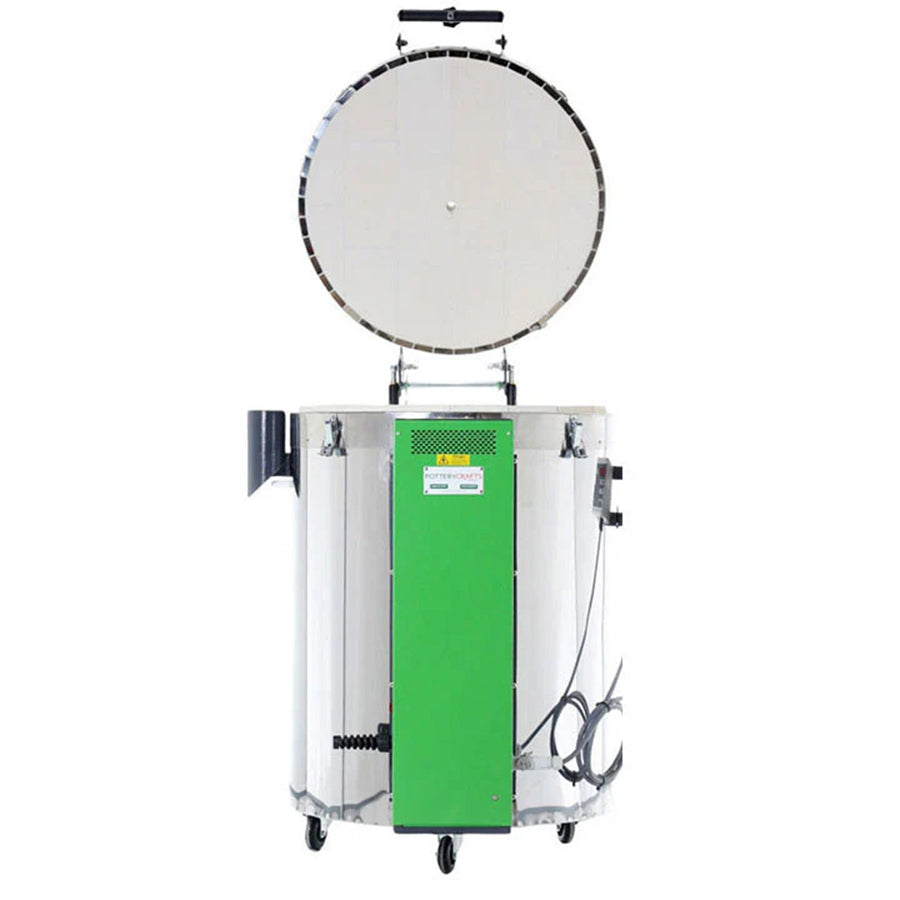

Potterycrafts Topworker 190 Litre Top Loading Kiln

The Potterycrafts Topworker 190L: Professional Top-Loading Kiln

The Potterycrafts Topworker 190 Litre top-loading kiln is built for professional studios, schools, and colleges working on a medium to large scale. With its robust stainless-steel frame, advanced insulation, and user-friendly design, it offers both efficiency and durability. Call us now on 01206 648025 for our free kiln selection service. If the kiln is not the right one for you, the return is completely free.

Potterycrafts Topworker 190L Capacity

With a 190 litre firing chamber, this top-loading model is perfect for larger projects, providing consistency and performance batch after batch.

Premium Construction

The Topworker kiln is constructed with two-layer insulation: high-quality insulation brick backed by ceramic blanket, plus 108 mm Ultralite granular insulation in the base. The outer frame is high-grade folded stainless steel with spring-loaded tensioning clamps, ensuring rigidity throughout the kiln’s lifetime.

Efficient and Easy to Use

• Grooved elements provide uniform heating across the chamber.
• Type R thermocouple ensures accuracy and long-term reliability.
• Gas strut assistance for effortless lid opening and closing.
• Three support bricks in the base enable stable shelf placement and improved heat circulation.
• Fitted with 75 mm castors (two lockable) for mobility and security in place.

Made in the Potteries

Manufactured in Stoke-on-Trent, England, this kiln reflects the heritage of “The Potteries.” Potterycrafts kilns are among Europe’s best-selling models, backed by reliable engineering and full spare part availability from our factory.

Safety Features

• Dual contactors and over-temperature monitoring (when paired with Potterycrafts controllers).

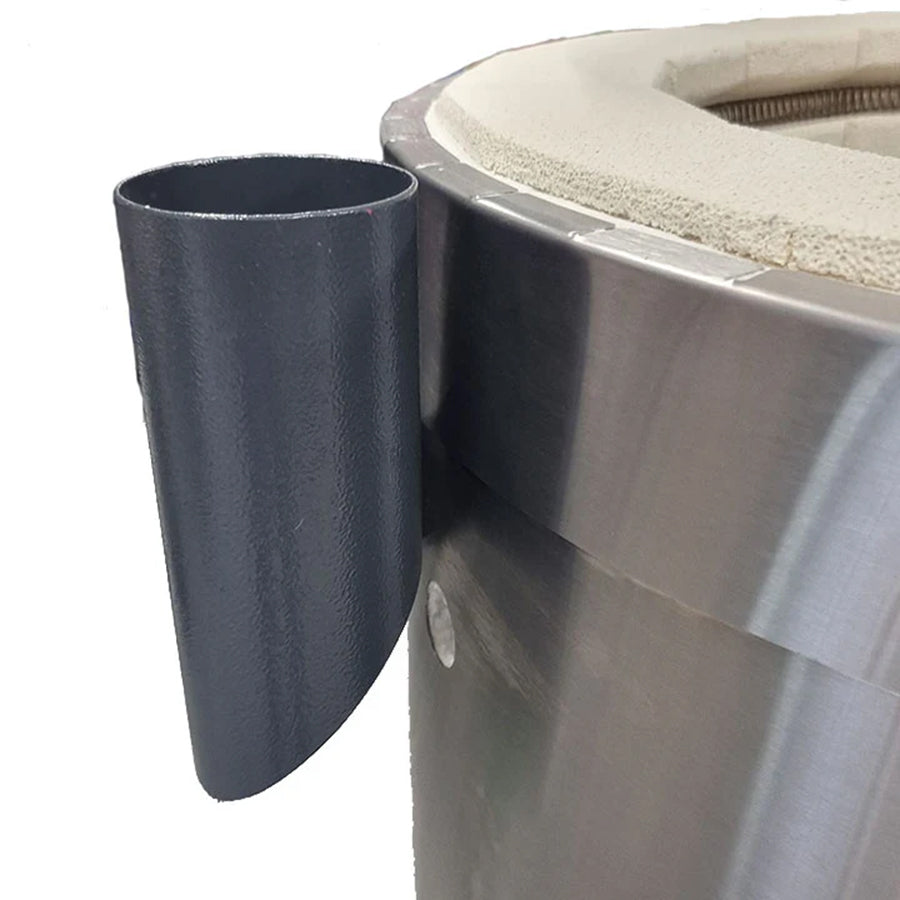

• Side vent with chimney, ductable to atmosphere if required.
• Lid vent holes for safe venting and controlled cooling.

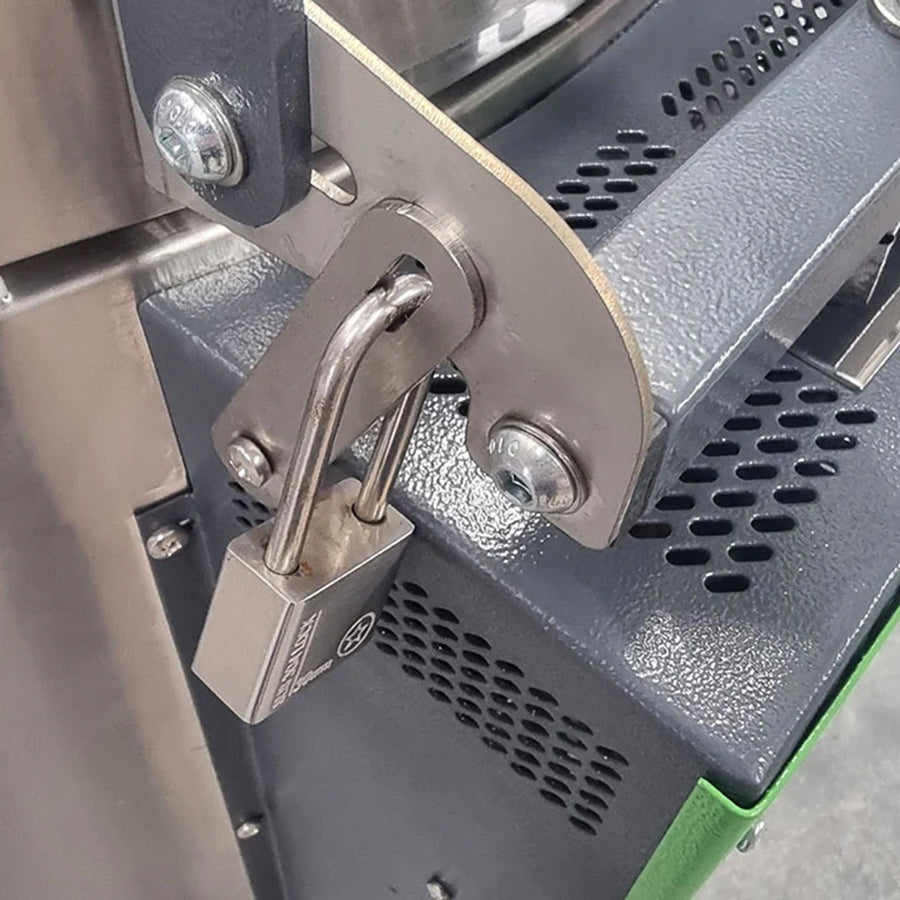

• Captive interlock safety switch prevents operation unless locked securely.
• Fully ROHS and WEEE compliant.

Temperature Control

The Topworker 190L is compatible with the following controllers:

• CERA-10+ Controller: Offers 32 programs with 32 segments each, including ramp, target temperature, and hold functions. Suited for pottery, glass, and scientific applications.
• CERA-10+ WIFI Controller: Adds wireless connectivity for PC, tablet, or smartphone operation via the GATEway app.

Specifications

Internal Size: 65 cm (W) × 57.5 cm (H)

External Size: 84 cm (W) × 109 cm (D) × 99 cm (H)

Capacity: 190 Litres

Weight: —

Power: 12 kW

Supply: Single Phase – 63 A (hard-wired), or 3 Phase & Neutral – 20 A per phase (on request)

Maximum Temperature: 1300 °C (User); 1240 °C (Application)

Warranty: 2 years (excluding elements)

Controller: Optional (CERA-10+ or CERA-10+ WIFI)
