Potterycrafts Lightmaster 150 Litre Front Loading Kiln

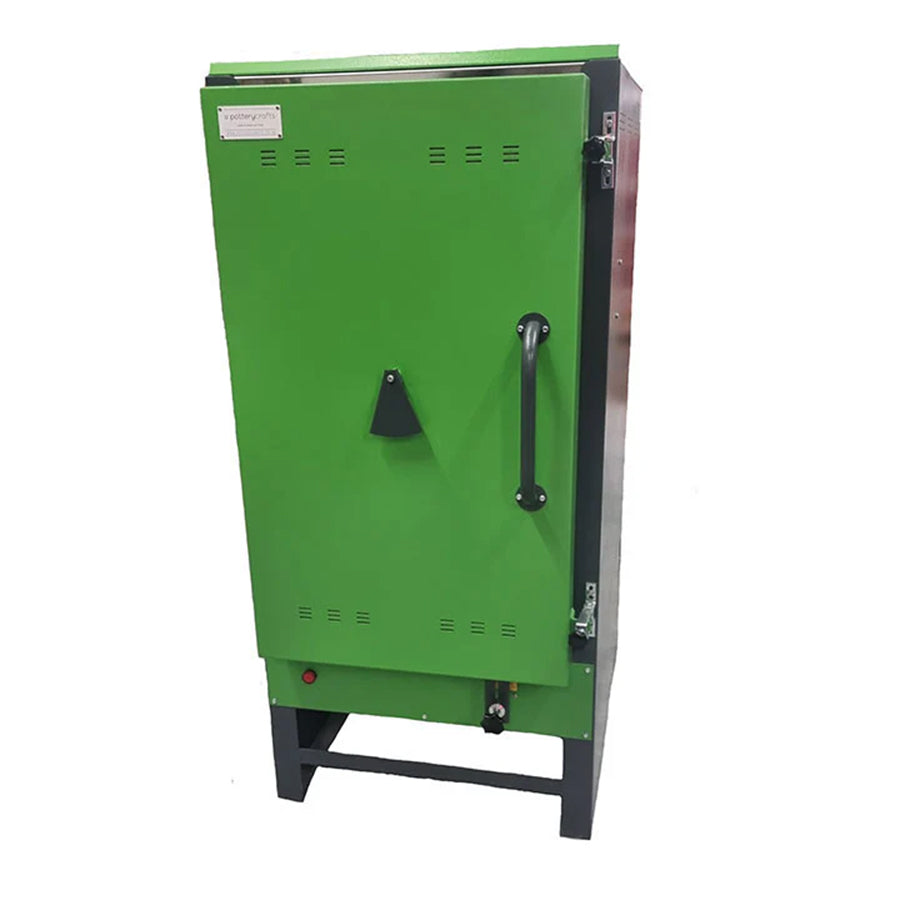

The Potterycrafts Lightmaster 150L: Traditional Front-Loading Kiln

The Potterycrafts Lightmaster 150 Litre front-loading kiln is a robust, traditional-style kiln built for studios, schools, colleges, and private users who value durability and reliability. Using tried-and-tested design with advanced insulation and precise control, it offers excellent heat distribution and long-term performance. Call us now on 01206 648025 for our free kiln selection service. If the kiln is not the right one for you, the return is completely free.

Potterycrafts Lightmaster 150L Capacity

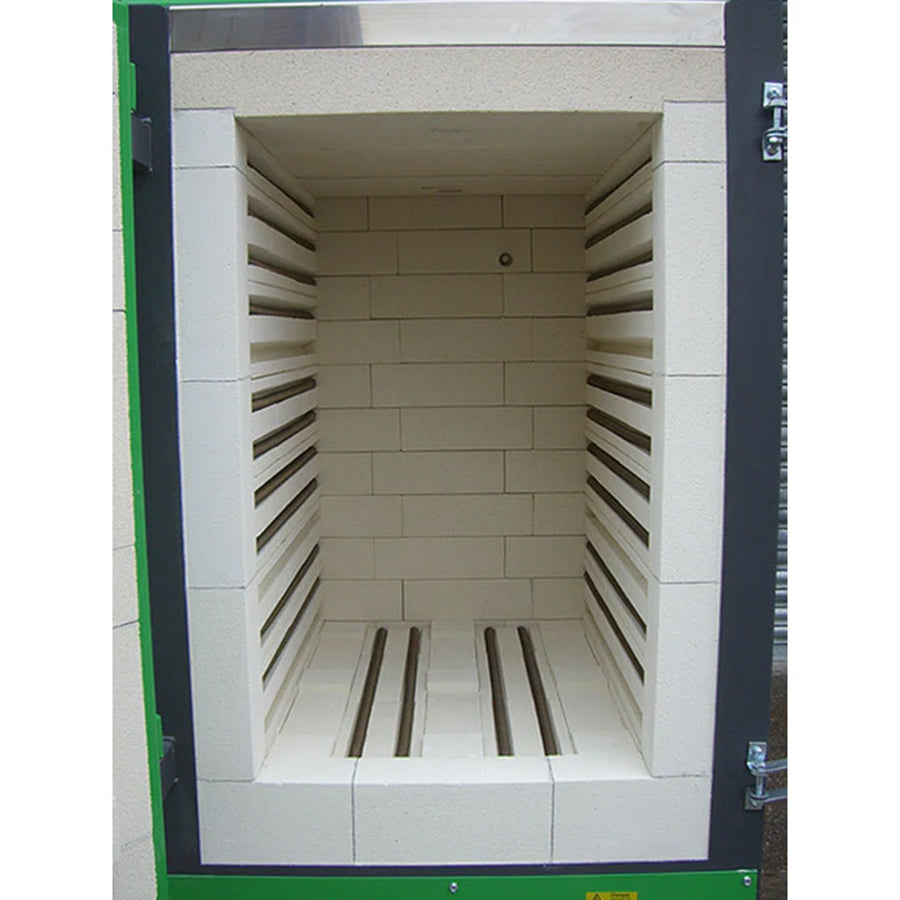

With a generous 150-litre firing chamber, this kiln is ideal for medium-to-large batches, making it perfect for teaching environments and professional potters.

Premium Construction

The kiln is constructed from durable low thermal insulation brick with two high-grade backup insulation boards, all enclosed within a high-quality pressed steel and powder-coated frame. The brick-to-brick door seal ensures a flush fit with no fibre seals that deteriorate, delivering reliable heat retention over time.

Efficient Heating Design

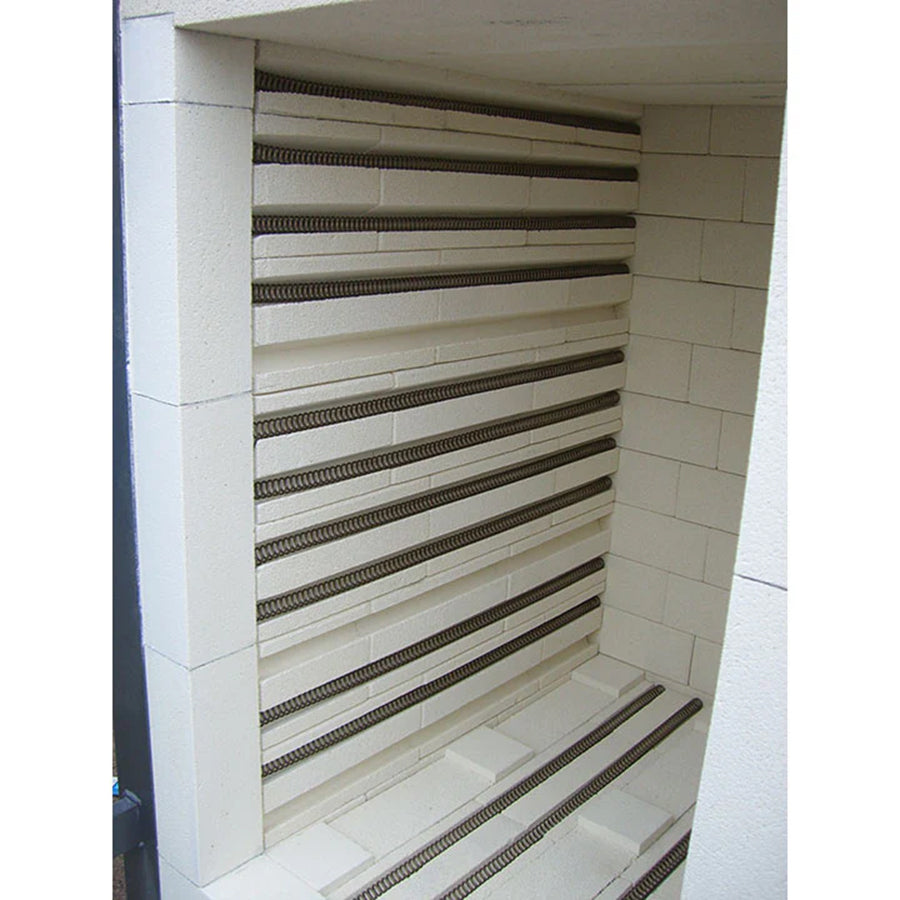

Kanthal A1 elements are embedded into the grooved brickwork of the side walls and the kiln floor, ensuring uniform heat distribution throughout the chamber. This system provides consistent results while minimising heat loss. A door spy hole and flue vent with manual damper are included as standard (automated dampers available as an upgrade).

Made in the Potteries

Designed and built in Stoke-on-Trent, England, Potterycrafts kilns are one of Europe’s best-selling brands. Spare parts are stocked at our Stoke factory, ensuring quick support and reliable aftercare.

Safety Features

• Dual contactors and over-temperature monitoring prevent overfires (when paired with Potterycrafts controllers).
• Type R thermocouple for long-term accuracy.
• Roof and door vents provided as standard to aid venting and cooling.
• Captive interlock safety switch prevents the kiln operating unless securely locked.
• Fully ROHS and WEEE compliant.

Temperature Control

The Lightmaster 150L is compatible with the following controllers:

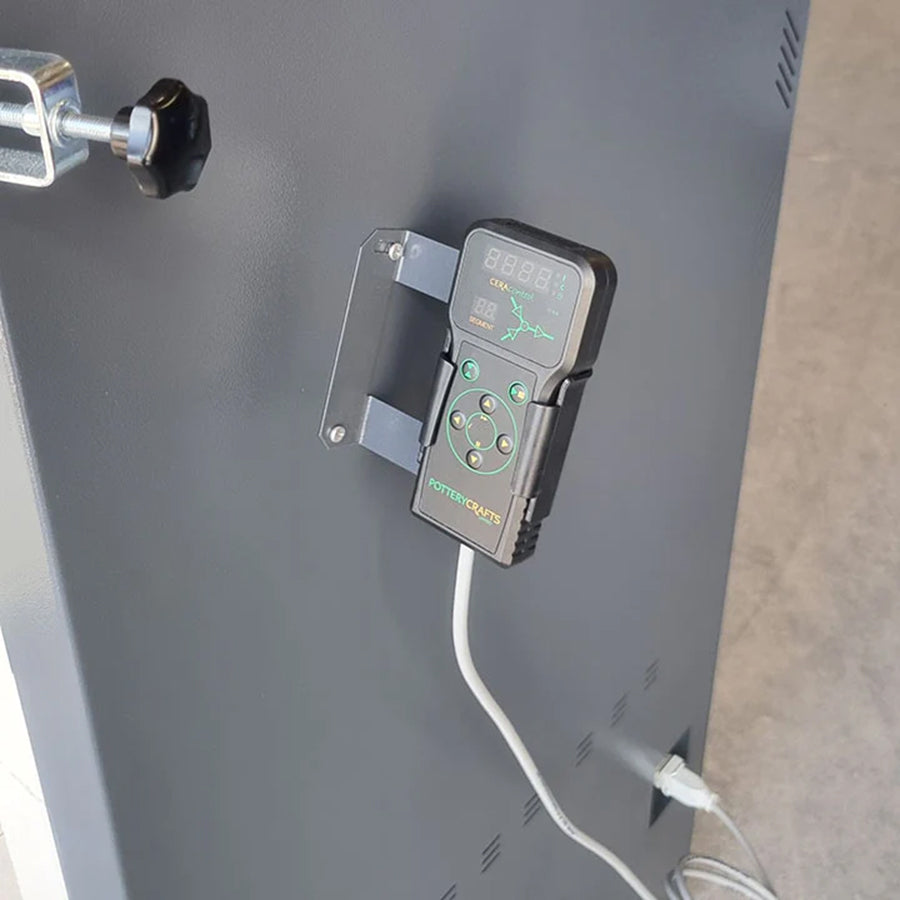

• CERA-10+ Controller: Offers 32 programs with 32 segments each (ramp, target temp, hold). Easy to use for beginners yet powerful for advanced firing, glass, and industrial processes.
• CERA-10+ WIFI Controller: All the features of the CERA-10+, plus remote control through PC, smartphone, or tablet via the GATEway app.

Specifications

Internal Size: 46 cm (W) × 48 cm (D) × 68 cm (H)

External Size: 73 cm (W) × 94 cm (D) × 156 cm (H)

Capacity: 150 Litres

Weight: —

Power: 7.5 kW

Supply: Single Phase – 40 A (hard-wired by qualified electrician), or 3 Phase & Neutral – 15 A per phase (on request)

Maximum Temperature: 1300 °C (User max: 1300 °C; Application max: 1240 °C)

Warranty: 2 years (excluding elements)

Controller: Optional (CERA-10+ or CERA-10+ WIFI)
