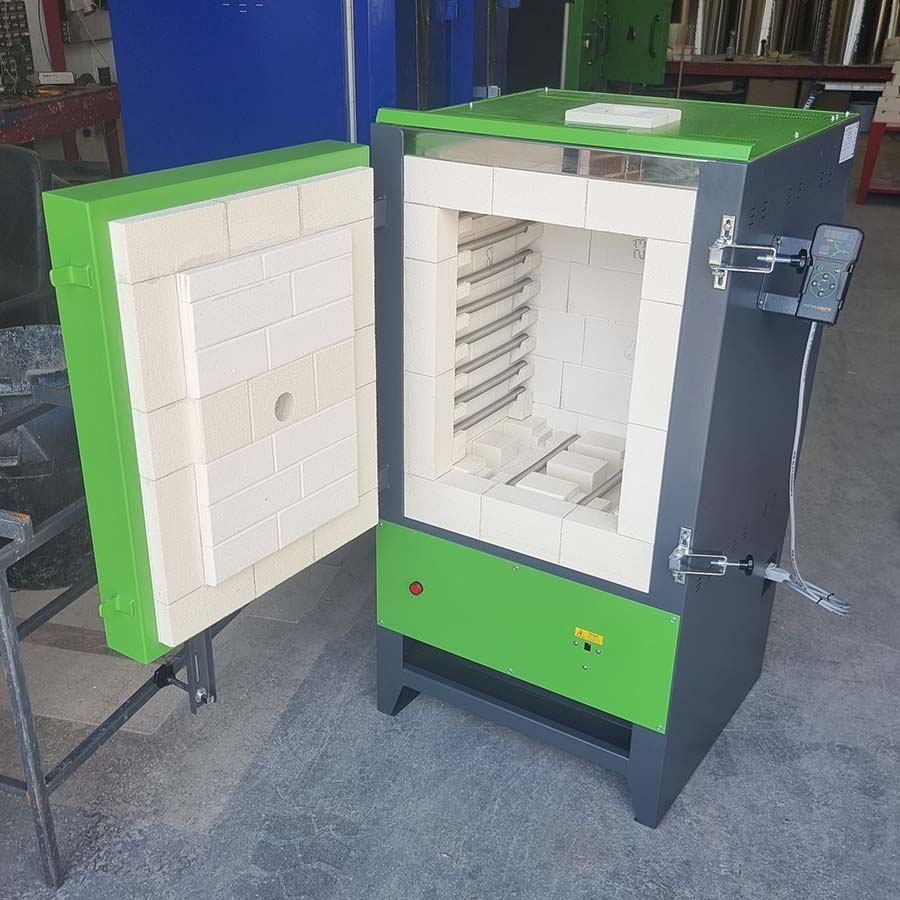

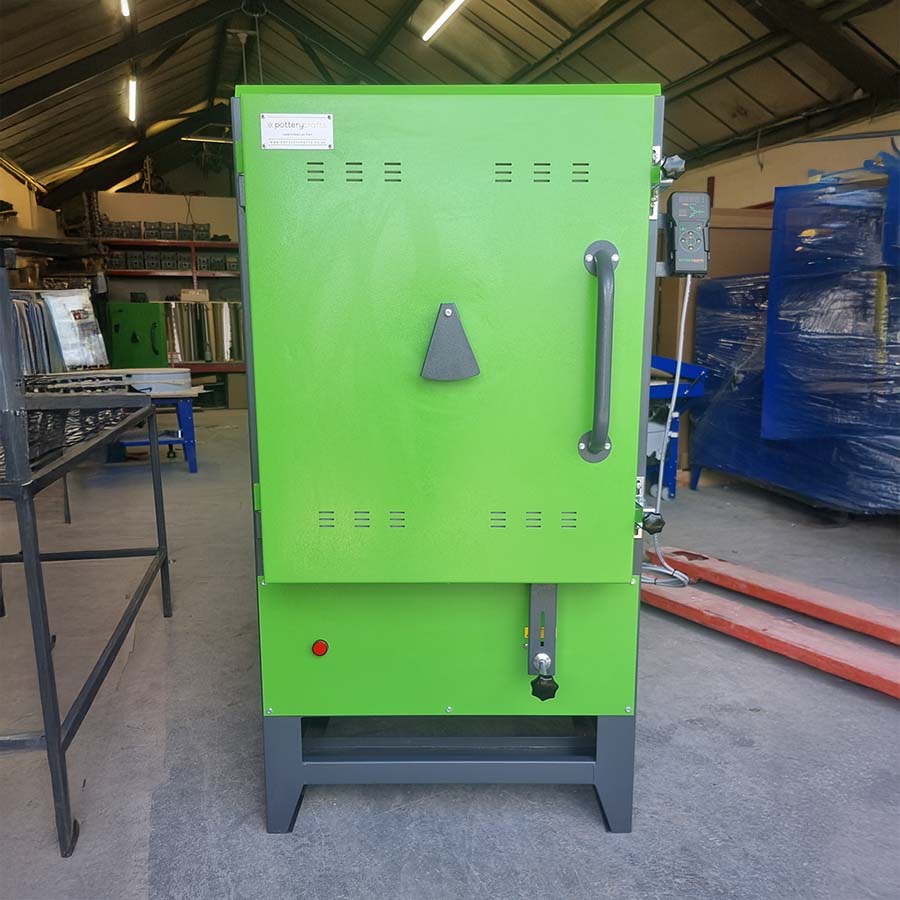

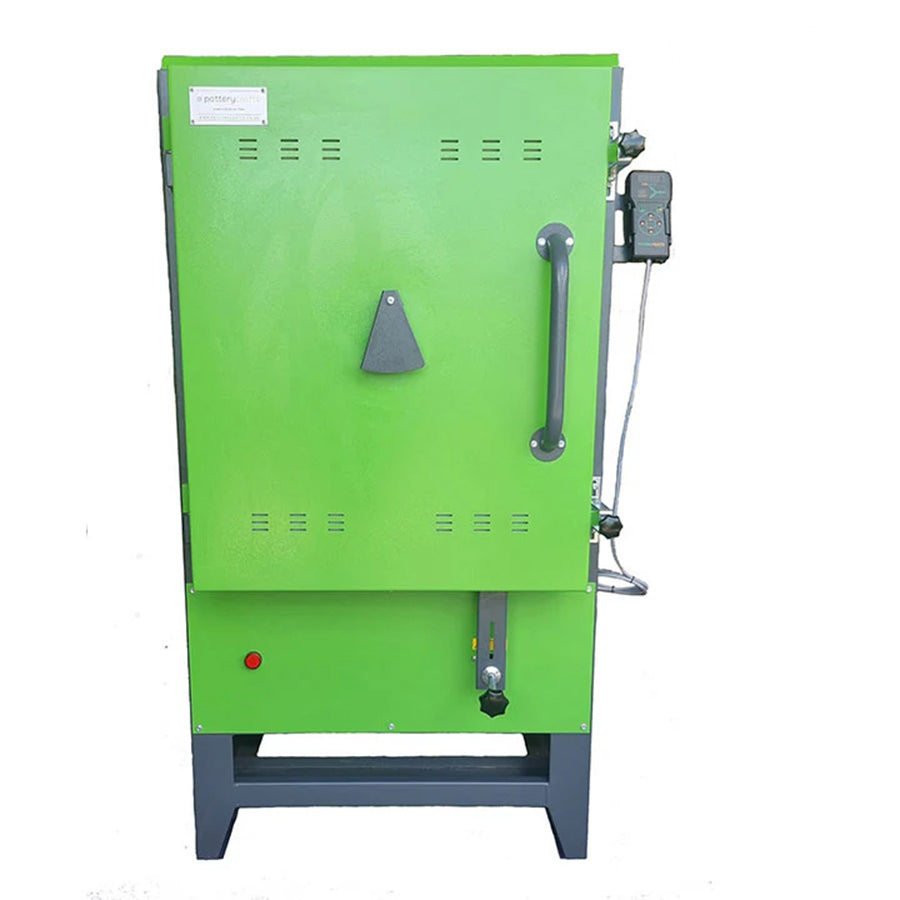

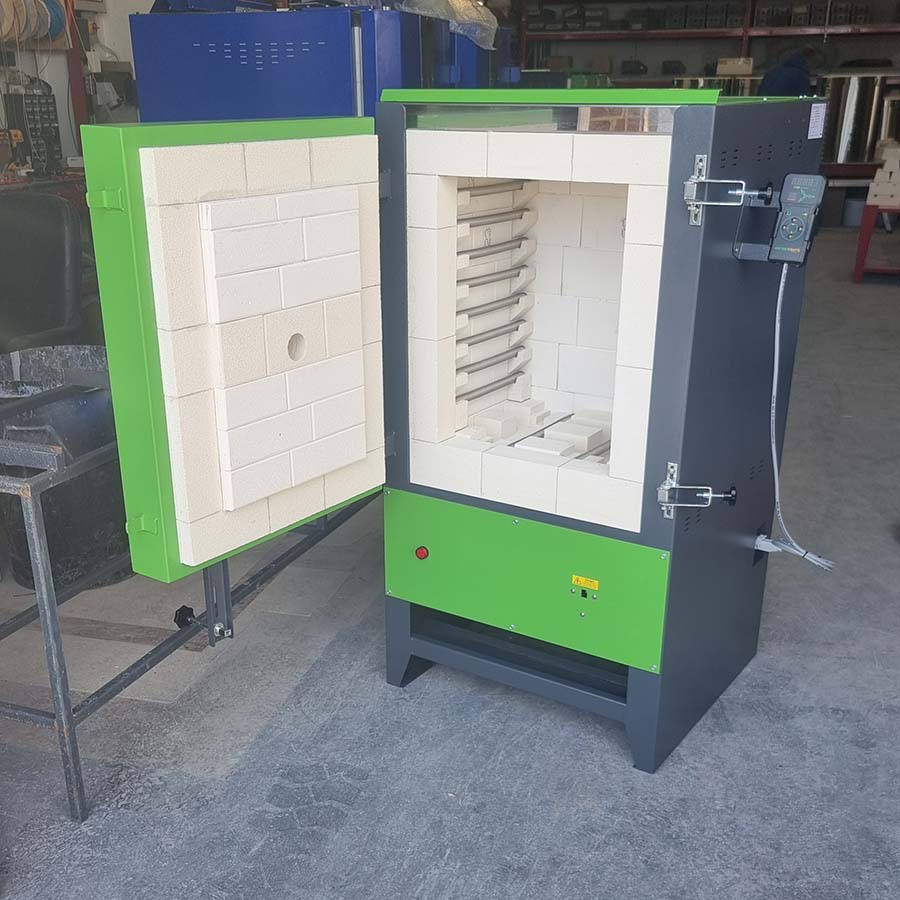

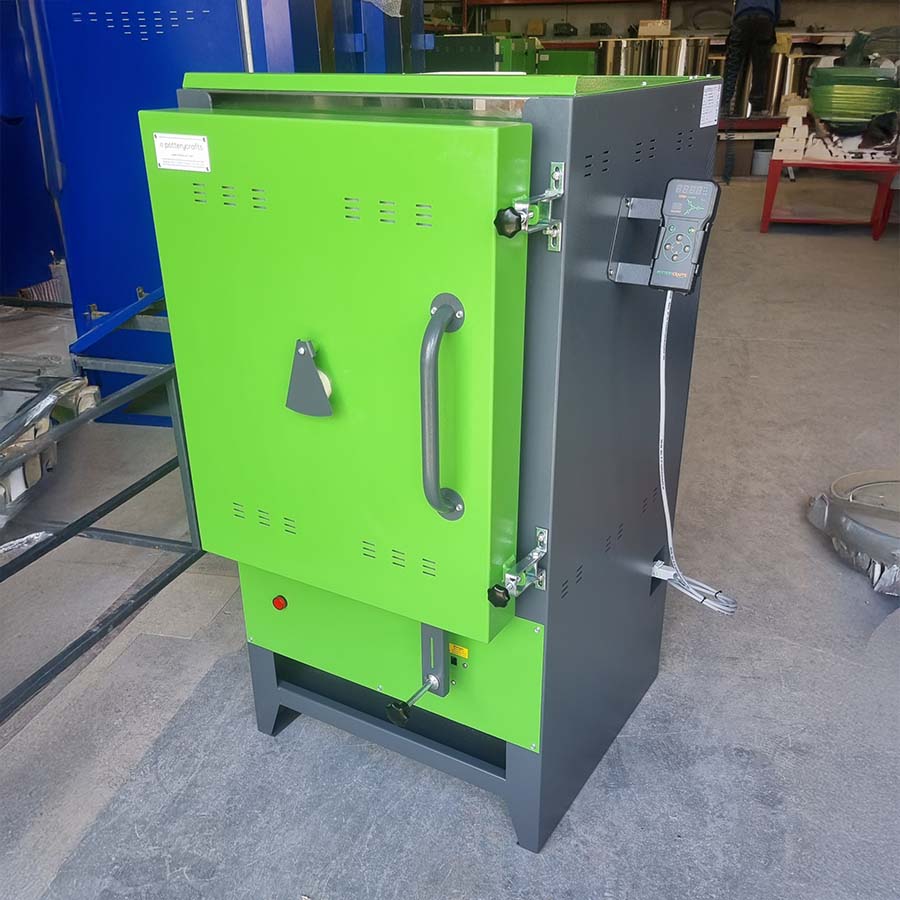

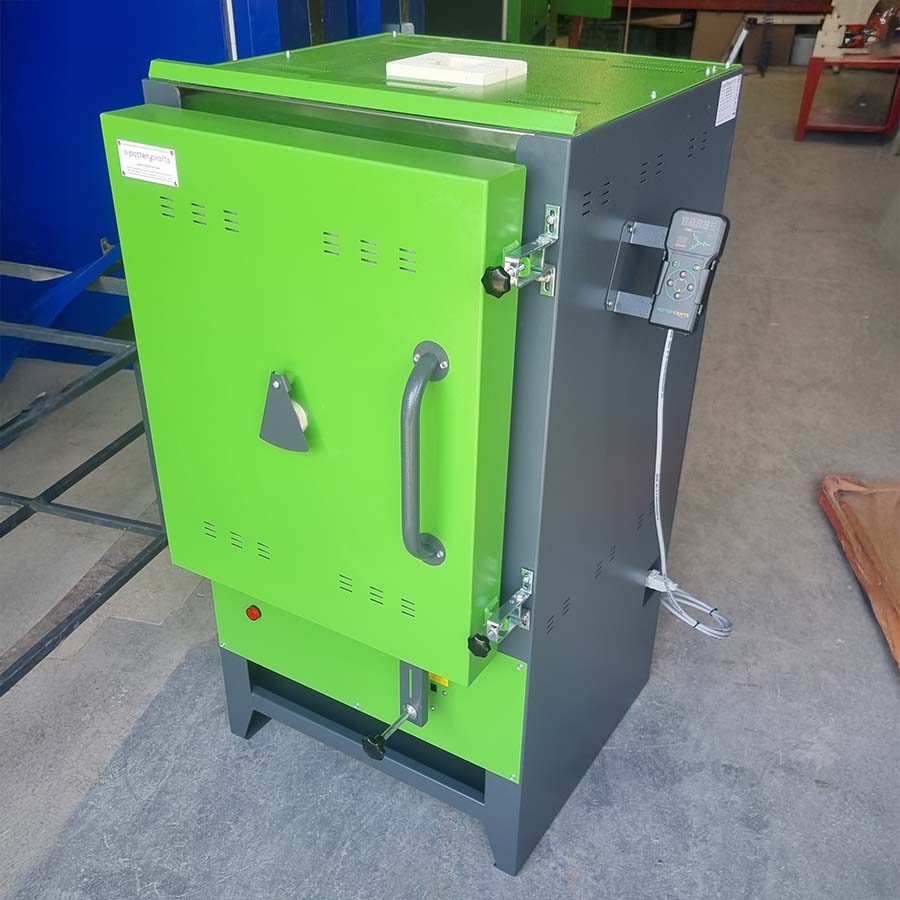

Potterycrafts Heatworker 90 Litre Front Loading Kiln

The Potterycrafts Heatworker 90L: Premium Front-Loading Kiln for Professionals

Need a kiln built for reliability, durability, and precision? The Potterycrafts Heatworker 90 Litre kiln is a premium ‘tubed’ kiln designed for potters, studios, schools, and colleges who demand the very best. With its advanced construction and higher maximum temperature, the Heatworker range offers superior performance and longevity. Call us now on 01206 648025 for our free kiln selection service. If the kiln is not the right one for you, the return is completely free.

The Potterycrafts Heatworker 90L Capacity

With a firing chamber of 90 litres, this kiln is perfectly suited for professional studios and teaching environments where consistent results are required, time and time again.

The Potterycrafts Heatworker 90L is Built to Last:

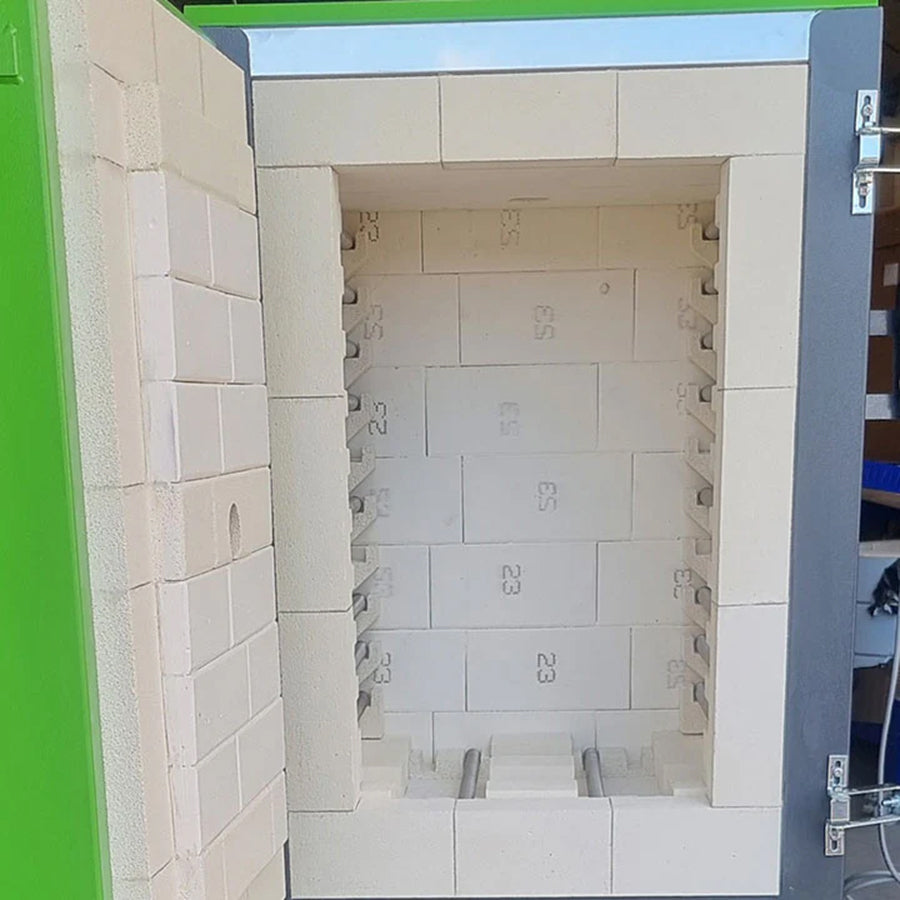

Constructed from durable low thermal insulation brick with two high-grade backup insulation boards, all enclosed within a robust pressed steel and powder-coated frame. Every detail of this kiln is engineered for long service life and high performance.

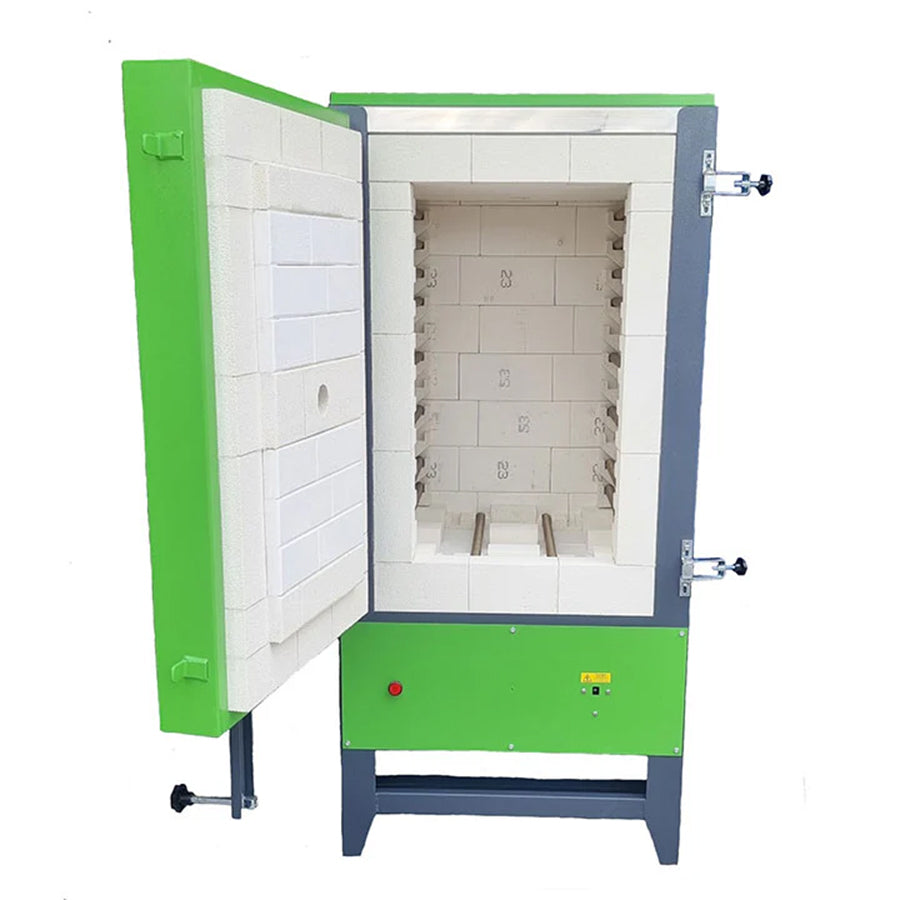

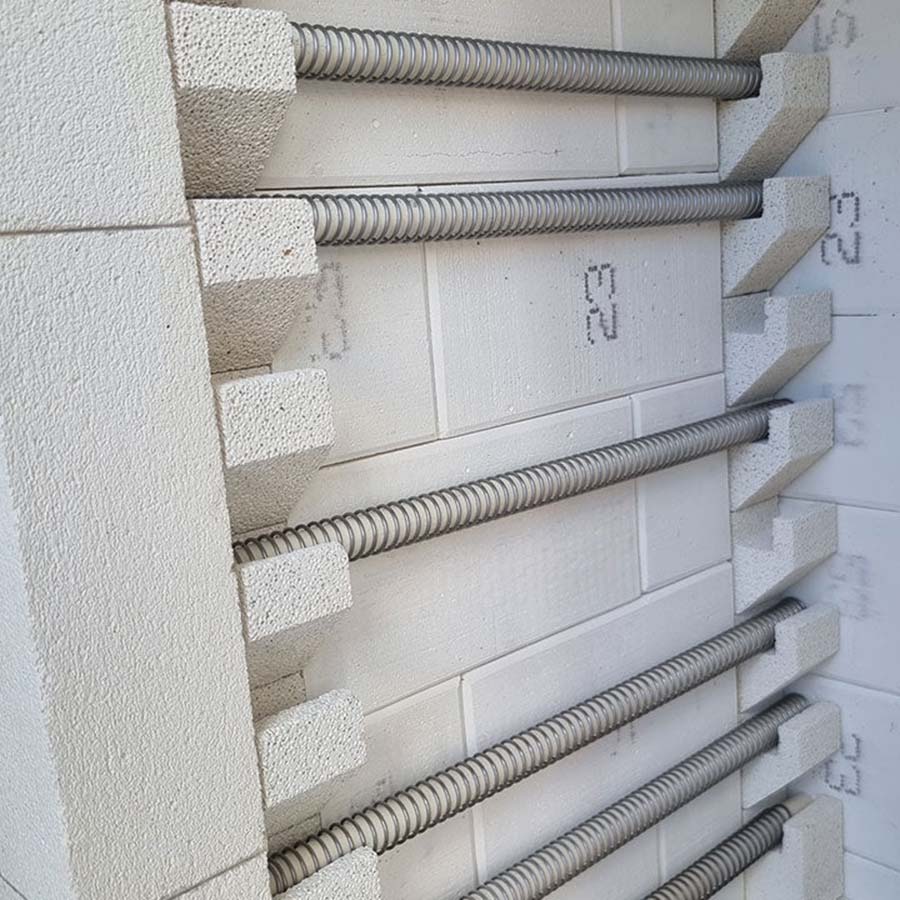

Advanced Tubed Element Design

Unlike conventional kilns with elements recessed into grooved walls, the Heatworker range uses ceramic support tubes to mount the elements. This innovative design reduces stress on both the chamber and elements, increases efficiency, and extends kiln life.

Benefits include:

• Increased efficiency as radiant heat enters the chamber directly.
• Reduced stress on elements and brickwork.
• Easier and quicker element changes.
• Greatly reduced risk of element failure causing brick damage.
• Extended chamber life with no grooves cut into the bricks.

Maximum Design Temperature

The Heatworker 90L achieves a higher maximum design temperature of 1320°C, offering greater flexibility across all firing applications, including stoneware and porcelain.

Thermal Efficiency

Two-layer insulation with grooved brick and backup boards ensures excellent thermal efficiency, providing optimal heat retention and distribution for reliable results.

Safety and Compliance

The kiln is equipped with essential safety features:

• Dual contactors and over-temperature monitoring to prevent overfires (when paired with Potterycrafts controllers).
• Type R thermocouple for accuracy and longevity.

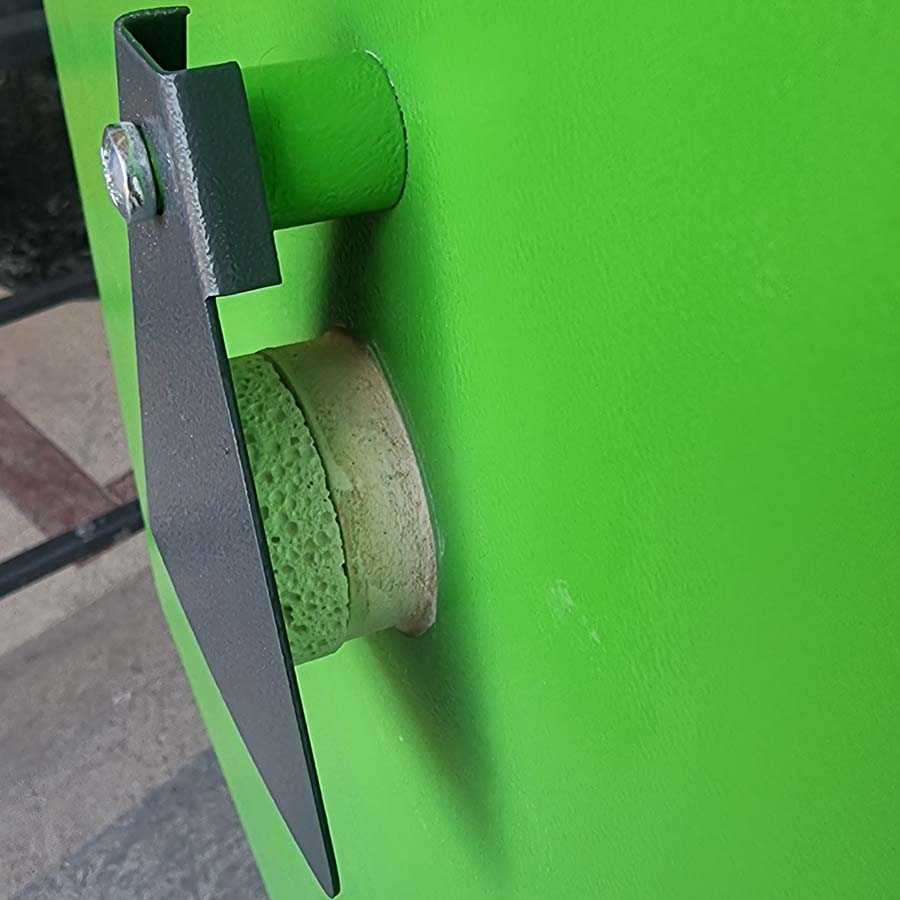

• Roof and door vents as standard for venting and cooling.
• Captive interlock safety switch prevents operation unless locked in place.
• Fully ROHS and WEEE compliant.

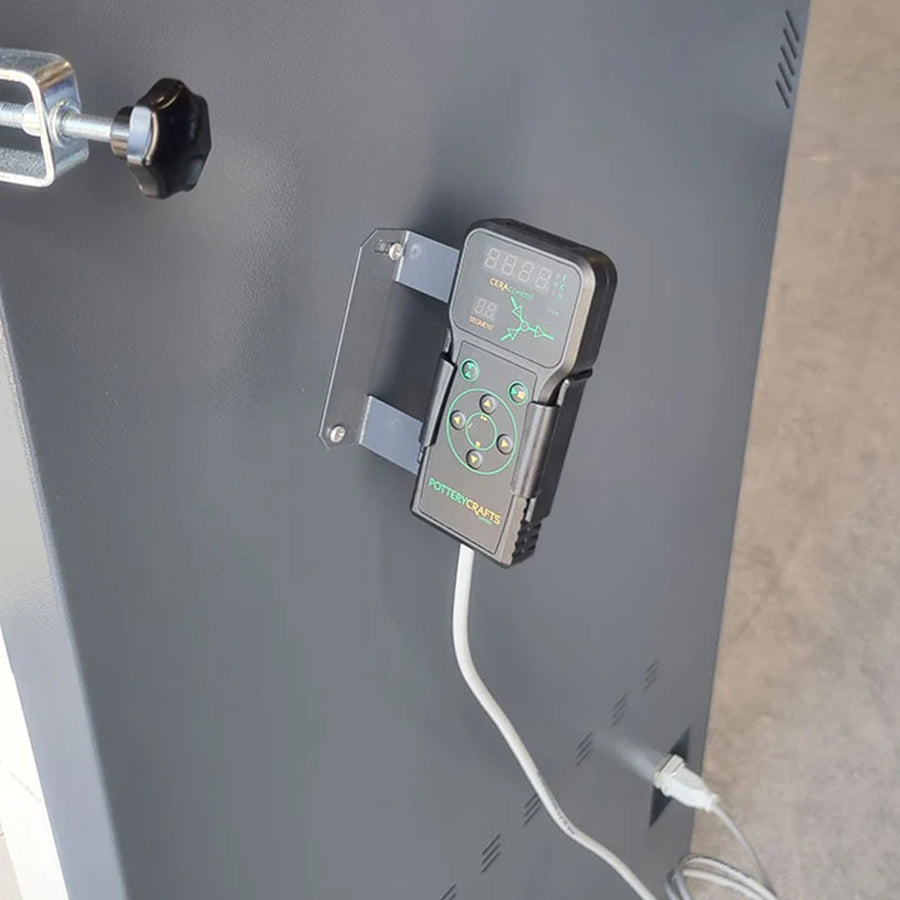

Temperature Control

The Heatworker 90L can be fitted with your choice of advanced controllers:

• CERA-10+ Controller: Features 32 programs with 32 segments each, including ramp speed, target temperature, and hold periods. Simple enough for basic firings but advanced enough for complex cycles, suitable for pottery, glass, and scientific use.
• CERA-10+ WIFI Controller: Includes all CERA-10+ features plus WIFI control via PC, tablet, or smartphone using the GATEway app.

Specifications

Internal Size: 41.5 cm (W) × 36.5 cm (D) × 56 cm (H)

External Size: 73 cm (W) × 87.5 cm (D) × 145 cm (H)

Capacity: 90 Litres

Weight: 245 kg

Power: 6 kW

Supply: Single Phase 30 A (hard-wired by qualified electrician) or 3 Phase & Neutral – 10 A per phase (on request at point of order)

Maximum Temperature: 1320 °C (User max: 1300 °C; Application max: 1280 °C)

Warranty: 2 years (excluding elements)

Controller: Optional (CERA-10+ or CERA-10+ WIFI)
