Kins & Furnaces Falcon Compact CP 160L Centre Pivot Door - Kiln Crafts

Kilns & Furnaces Falcon Compact CP 160L Centre Pivot Door

by Kilns & Furnaces

FREE SHIPPING for all Kilns

30 Days lead time for your kiln to be built to order

£7,588.90
inc. VAT · free UK delivery
✓ Your kiln
Kilns & Furnaces Falcon Compact CP 160L Centre Pivot Door £7,588.90
2
Add a pottery wheel? Bundle with a wheel, apron & clay — save up to £373
Kilns & Furnaces Falcon C... £7,588.90
Total

🚚 Free shipping to mainland UK

All Prices Include VAT

Not Sure What Size Kiln You Need?

Have a little play around with Kiln Crafts kiln size calculator. Giving you that peace of mind that you're investing in the right size for your needs.

Kilns and Furnaces Falcon Compact CP 160L Centre Pivot Door Kiln - Kiln Crafts

The Falcon Compact CP 160L — centre pivot door, same Falcon quality. Free UK delivery. Call 01206 648025 for free kiln selection.

Kilns & FurnacesFalcon Compact CP 160L — Centre Pivot Door

All the firing performance of the Falcon range in a more space-efficient package. The Compact CP uses a centre pivot door that opens without a full side swing — the practical choice for studios where space in front of the kiln is limited.

  • 163L front-loading chamber: 46cm (W) x 61cm (D) x 58cm (H) internal. Full Falcon construction quality with the centre pivot door design.
  • Centre pivot door: The door pivots from its centre point rather than swinging fully to one side — significantly reducing the clearance needed in front of the kiln.
  • 1300°C maximum: The full ceramic firing range in the same Falcon specification as the standard range.
  • Electro-mechanical door interlock: UK-compliant safety system as standard across all Compact CP models.

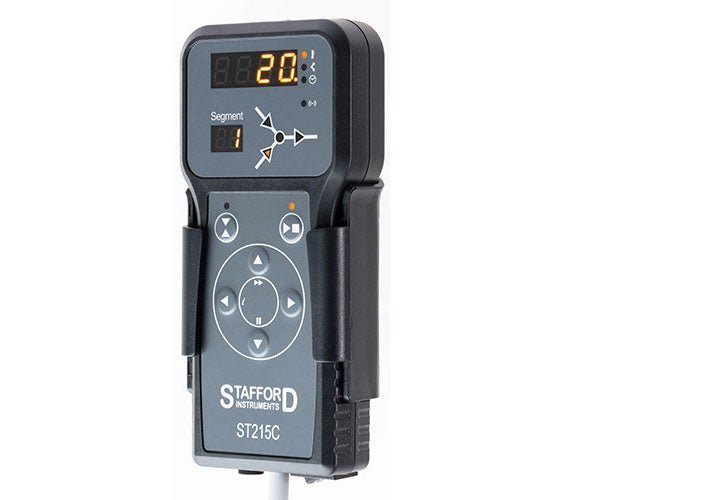

  • TCS2 controller (optional): 32-segment programmable digital control — available with or without controller at point of order.
163L capacityCentre pivot doorFree UK delivery
Centre pivot door
Compact footprint
Full Falcon quality
From £7,589with or without controller

Available with or without TCS2 controller. Free UK delivery included.

Call 01206 648025 for installation advice and our free kiln selection service.

The Same Kiln, Smarter Door Design

A standard front-loading kiln door swings fully to one side — which requires clear space to the side of the kiln for the door to open completely. In a busy studio, that clearance is not always available. The Falcon Compact CP addresses this with a centre pivot door that opens symmetrically from its centre point, splitting the swing equally either side. The result is significantly less clearance needed in front of and beside the kiln.

Internally, the Compact CP is the same kiln as the standard Falcon range — the same highly thermally efficient construction, the same high-grade spiral wound elements in the sidewall and base, the same electro-mechanical door interlock safety system, and the same 1300 degrees C maximum temperature. The only change is the door mechanism, and that change is driven entirely by practical studio considerations.

The TCS2 series controller is available as an option at the point of order — choose with or without depending on your control requirements and existing setup.

The Falcon CP 160L CP Is Right For You If

  • You need the deeper 163L chamber with centre pivot door access
  • You want the same capacity as the Falcon 160L in a CP format
  • You have 3-phase supply or want that option
  • You need front-loading in a studio where door swing is a constraint
  • You fire large loads and want CP convenience

What Makes the Compact CP Different

Centre Pivot Door Design

The door pivots from its centre point rather than its edge — so instead of swinging 90 degrees to one side, it opens with an equal arc each way. The practical benefit is clear: you need less clearance in front of and beside the kiln to fully open the door. In a compact studio, a shared workspace, or any setting where kiln placement is constrained, the CP design solves a real problem.

Same Falcon Internal Construction

Everything inside the Compact CP is identical to the standard Falcon range — thermally efficient construction, high-grade spiral wound elements in both the sidewall and base, over-temperature protection, and ventilation cooling ports. The same quality of firing performance and the same consistent results. The CP design is a practical accommodation, not a compromise on internal specification.

With or Without Controller

The Compact CP is available at point of order with the TCS2 series programmable controller or without. If you already have a controller setup or prefer to add one later, you can order the kiln only. If you want full TCS2 digital control with 32 programmable firing segments from day one, choose the with-controller option. Both are available — just confirm your preference when ordering.

Requires a dedicated 50AA hardwired single-phase supply installed by a qualified electrician. 3-phase option available at 20AA per phase on request at point of order. Call us on 01206 648025 before ordering to confirm electrical requirements.

Technical Specifications — Falcon Compact CP 160L

Capacity163L
Internal Dimensions46cm (W) x 61cm (D) x 58cm (H)
External Dimensions77cm (W) x 108cm (D) x 145cm (H)
Power9.8kW
SupplySingle phase: 50AA at 220/230V / 3-phase option: 20AA per phase at 380/400V
Door DesignCentre pivot (CP) — reduced front clearance required
Max Temperature1300 degrees C
ElementsHigh-grade spiral wound — sidewall and base
Door SafetyElectro-mechanical interlock (UK compliant)
ControllerOptional — TCS2 series (available at point of order)
SparesFull UK spares service and maintenance contracts

Ready for the Falcon Compact CP 160L?

Call us on 01206 648025 before ordering — we will confirm the electrical requirements and help you decide whether the standard Falcon or the Compact CP is the better fit for your studio layout.

Free UK delivery. Available with or without TCS2 controller. Free returns if it is not right.
