Kilns & Furnaces Falcon 500L Front Load Pottery Kiln - Kiln Crafts

Kilns & Furnaces Falcon 500L Front Load Pottery Kiln

by Kilns & Furnaces

FREE SHIPPING for all Kilns

8 weeks lead time for your kiln to be built to order

£16,249.00
inc. VAT · free UK delivery
✓ Your kiln
Kilns & Furnaces Falcon 500L Front Load Pottery Kiln £16,249.00
2
Accessories for your kiln Compatible upgrades & furniture — all optional
3
Would you like to turn this into a pottery package? Bundle a wheel with your accessories — get 20% off the extras
Kilns & Furnaces Falcon 5... £16,249.00
Total

🚚 Free shipping to mainland UK

All Prices Include VAT

Not Sure What Size Kiln You Need?

Have a little play around with Kiln Crafts kiln size calculator. Giving you that peace of mind that you're investing in the right size for your needs.

Kilns & Furnaces Falcon 500L Front Load Pottery Kiln - Kiln Crafts

The Falcon 500L — 3-phase supply required. Free UK delivery. Call 01206 648025 before ordering.

Kilns & FurnacesFalcon 500L Front Load Pottery Kiln

A professional front-loading kiln built for the largest commercial operations — production potteries, large educational institutions, and ceramics manufacturers where maximum volume is the priority. 510L of firing space, 1300 degrees C maximum, high-grade spiral wound elements, and Kilns and Furnaces engineering that serious studios rely on.

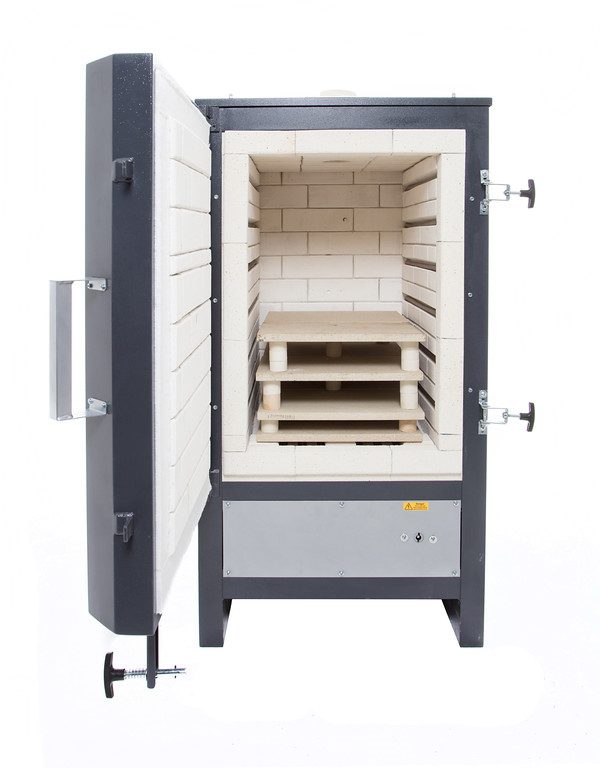

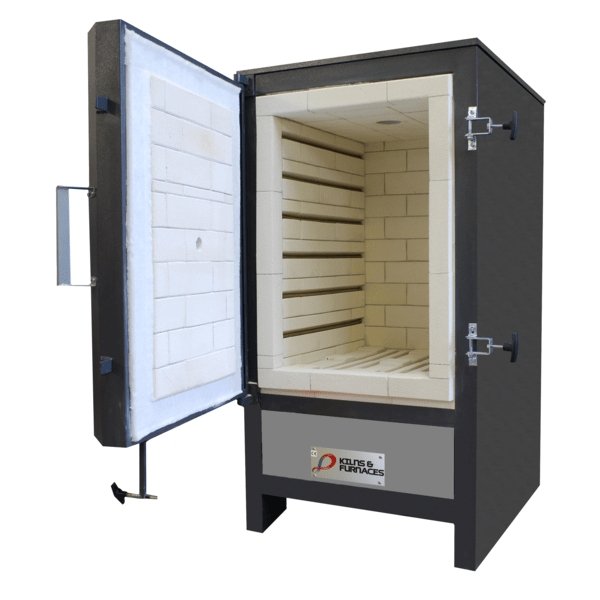

  • 510L front-loading chamber: 61cm (W) x 91cm (D) x 91cm (H) internal. Sized for the largest commercial operations — production potteries.
  • 1300°C maximum: The full ceramic firing range — earthenware, stoneware, and porcelain — all within the Falcon.
  • Electro-mechanical door interlock: UK-compliant safety system prevents door opening during operation.
  • High-grade spiral wound elements: Fitted to the sidewall and base for even heat across the full chamber volume.
  • TCS2 series controller (optional): 32 programmable firing segments — ramp, target temperature, and hold.
510L capacity1300°C maxFree UK delivery
K&F quality
Door interlock safety
TCS2 controller option
£16,249

Kilns and Furnaces Falcon 500L. 510L front-loading kiln. TCS2 controller optional. Free UK delivery.

Call 01206 648025 for installation advice and our free kiln selection service.

The Right Size for Your Studio

The Falcon 500L is the top of the range — 510 litres in a 61x91x91cm chamber, at 24.5kW on a 3-phase supply, weighing 590kg. This is a commercial kiln for commercial operations: large production potteries, ceramics manufacturers, and major educational institutions.

The Falcon range is built around a consistent engineering philosophy across all sizes: highly thermally efficient construction with high-grade spiral wound elements in both the sidewall and the base, a UK-compliant electro-mechanical door interlock, over-temperature kiln lining protection, and ventilation cooling ports as standard. The same quality of construction applies at every size in the range.

The TCS2 series controller is available as an optional addition giving you 32 programmable firing segments for full control over ramp rates, target temperatures, and hold times. Kilns and Furnaces provide a full UK spares service and maintenance contracts for long-term support.

The Falcon 500L Is Right For You If

  • You need the maximum Falcon capacity — 510 litres
  • You operate at commercial or institutional scale
  • You have 3-phase supply as standard
  • You fire at a volume where nothing smaller is sufficient
  • You are making a long-term investment in maximum production capacity

What Every Falcon Is Built With

Thermally Efficient Construction

Every Falcon kiln is built for efficiency — optimised heat retention and distribution throughout the chamber. High-grade spiral wound elements are fitted to both the sidewall and the base for even heat coverage across the full firing volume. Consistent results, lower electricity consumption per firing cycle, and quality that holds up over thousands of firings.

UK-Compliant Safety Systems

The electro-mechanical door interlock prevents the door from opening during a firing — UK-compliant and engineered to protect both the operator and the work inside. An over-temperature kiln lining protection system provides an additional layer of safety. Ventilation cooling ports allow controlled post-firing cooling and gas venting. An instrument socket is included, compatible with the full Kilns and Furnaces controller range.

TCS2 Series Digital Controller (Optional)

Optional programmable control over the firing cycle — ramp rates, target temperatures, and hold periods across up to 32 segments. Precise enough for the most technically demanding ceramic applications, clear enough for everyday use. Full UK spares service and maintenance contracts available for every Falcon kiln for long-term operational reliability.

3-phase supply required at 40AA per phase — this kiln cannot run on single phase. Call 01206 648025 before ordering to confirm your electrical setup. Call us on 01206 648025 before ordering and we will help confirm your electrical setup is ready.

Technical Specifications - Falcon 500L

Capacity510L
Internal Dimensions61cm (W) x 91cm (D) x 91cm (H)
External Dimensions97cm (W) x 135cm (D) x 168cm (H)
Power24.5kW
Supply3-phase only: 40AA per phase at 380/400V
Weight590kg
Max Temperature1300°C
ElementsHigh-grade spiral wound — sidewall and base
Door SafetyElectro-mechanical interlock (UK compliant)
Over-TemperatureKiln lining protection system standard
ControllerOptional — TCS2 series programmable
SparesFull UK spares service and maintenance contracts

Ready for the Falcon 500L?

Call us on 01206 648025 before ordering — we will confirm the electrical requirements for your studio and make sure the Falcon 500L is the right size for your output. Free kiln selection service available.

Free UK delivery, price match guarantee, and free returns if the kiln is not right.
