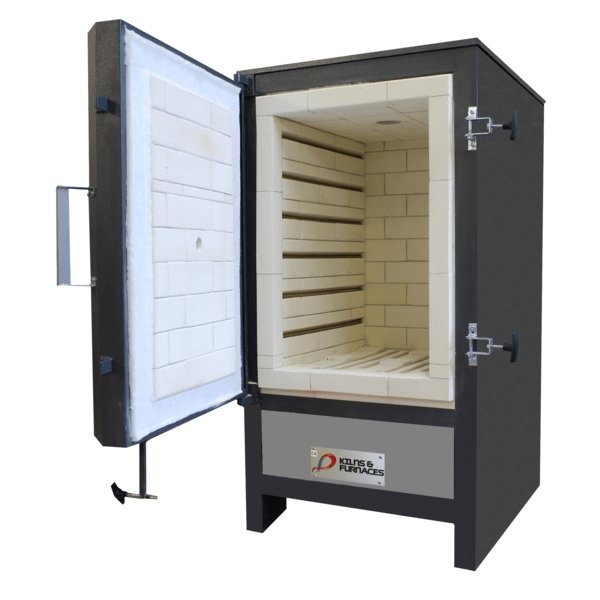

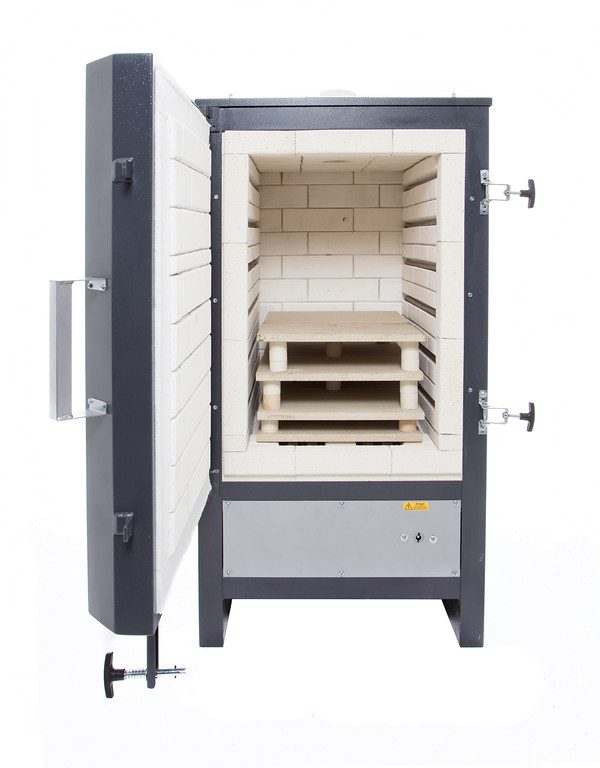

Kilns & FurnacesFalcon 160L Front Load Pottery Kiln

A professional front-loading kiln built for professional studios and colleges that need a deep front-loading kiln for larger pieces and substantial batch loads. 163L of firing space, 1300 degrees C maximum, high-grade spiral wound elements, and Kilns and Furnaces engineering that serious studios rely on.

  • 163L front-loading chamber: 46cm (W) x 61cm (D) x 58cm (H) internal. Sized for professional studios and colleges that need a deep front-loading kiln for larger pieces and substantial batch loads.
  • 1300°C maximum: The full ceramic firing range — earthenware, stoneware, and porcelain — all within the Falcon.
  • Electro-mechanical door interlock: UK-compliant safety system prevents door opening during operation.
  • High-grade spiral wound elements: Fitted to the sidewall and base for even heat across the full chamber volume.
  • TCS2 series controller (optional): 32 programmable firing segments — ramp, target temperature, and hold.
163L capacity1300°C maxFree UK delivery
K&F quality
Door interlock safety
TCS2 controller option
£6,749

Kilns and Furnaces Falcon 160L. 163L front-loading kiln. TCS2 controller optional. Free UK delivery.

Call 01206 648025 for installation advice and our free kiln selection service.

The Right Size for Your Studio

The Falcon 160L adds significant depth to the 120L (61cm versus 46cm) while keeping the same external footprint — giving you much more room for long or deep pieces without a larger floor plan. At 163 litres, it is one of the most popular professional front-loading sizes in the range.

The Falcon range is built around a consistent engineering philosophy across all sizes: highly thermally efficient construction with high-grade spiral wound elements in both the sidewall and the base, a UK-compliant electro-mechanical door interlock, over-temperature kiln lining protection, and ventilation cooling ports as standard. The same quality of construction applies at every size in the range.

The TCS2 series controller is available as an optional addition giving you 32 programmable firing segments for full control over ramp rates, target temperatures, and hold times. Kilns and Furnaces provide a full UK spares service and maintenance contracts for long-term support.

The Falcon 160L Is Right For You If

  • You need more depth than the 120L for longer pieces
  • You fire ambitious batch loads in a professional studio or college
  • You want a deeper chamber in the same external footprint
  • You need 163 litres of professional firing capacity
  • You want the 3-phase option at 20A per phase

What Every Falcon Is Built With

Thermally Efficient Construction

Every Falcon kiln is built for efficiency — optimised heat retention and distribution throughout the chamber. High-grade spiral wound elements are fitted to both the sidewall and the base for even heat coverage across the full firing volume. Consistent results, lower electricity consumption per firing cycle, and quality that holds up over thousands of firings.

UK-Compliant Safety Systems

The electro-mechanical door interlock prevents the door from opening during a firing — UK-compliant and engineered to protect both the operator and the work inside. An over-temperature kiln lining protection system provides an additional layer of safety. Ventilation cooling ports allow controlled post-firing cooling and gas venting. An instrument socket is included, compatible with the full Kilns and Furnaces controller range.

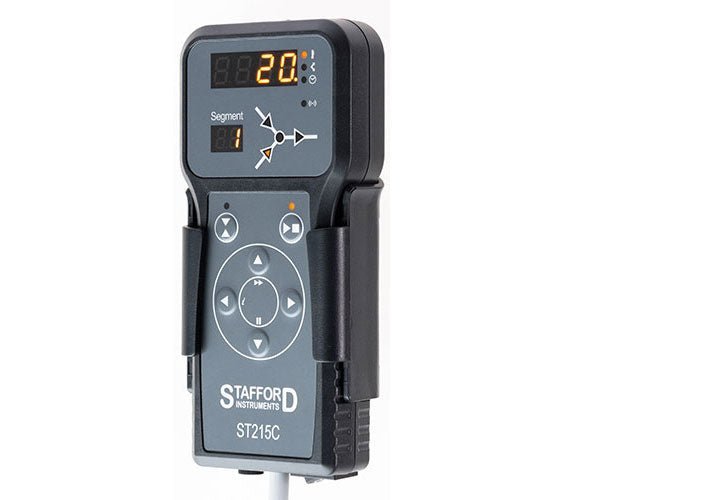

TCS2 Series Digital Controller (Optional)

Optional programmable control over the firing cycle — ramp rates, target temperatures, and hold periods across up to 32 segments. Precise enough for the most technically demanding ceramic applications, clear enough for everyday use. Full UK spares service and maintenance contracts available for every Falcon kiln for long-term operational reliability.

Requires a dedicated 50AA hardwired single-phase supply installed by a qualified electrician. 3-phase option available at 20AA per phase on request at point of order. Call us on 01206 648025 before ordering and we will help confirm your electrical setup is ready.

Technical Specifications - Falcon 160L

Capacity163L
Internal Dimensions46cm (W) x 61cm (D) x 58cm (H)
External Dimensions72cm (W) x 102cm (D) x 137cm (H)
Power9.8kW
SupplySingle phase: 50AA at 220/230V / 3-phase option: 20AA per phase at 380/400V
Weight245kg
Max Temperature1300°C
ElementsHigh-grade spiral wound — sidewall and base
Door SafetyElectro-mechanical interlock (UK compliant)
Over-TemperatureKiln lining protection system standard
ControllerOptional — TCS2 series programmable
SparesFull UK spares service and maintenance contracts

Ready for the Falcon 160L?

Call us on 01206 648025 before ordering — we will confirm the electrical requirements for your studio and make sure the Falcon 160L is the right size for your output. Free kiln selection service available.

Free UK delivery, price match guarantee, and free returns if the kiln is not right.
