Kilns & Furnaces Falcon 120L Front Load Kiln

FREE SHIPPING for all Kilns

30 Days lead time for your kiln to be built to order

Ā£6,529.00

All Prices Include VAT

Notify me when back in stock

Not Sure What Size Kiln You Need?

Have a little play around with Kiln Crafts kiln size calculator. Giving you that peace of mind that you're investing in the right size for your needs.

Kilns & Furnaces Falcon 120L Front Load Pottery Kiln - Kiln Crafts

The Falcon 120L — free UK delivery. Call 01206 648025 for free kiln selection advice.

Not sure which kiln is right for you?

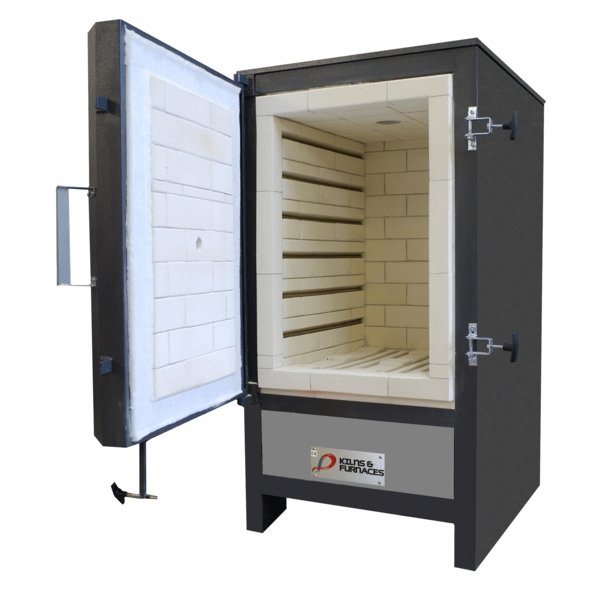

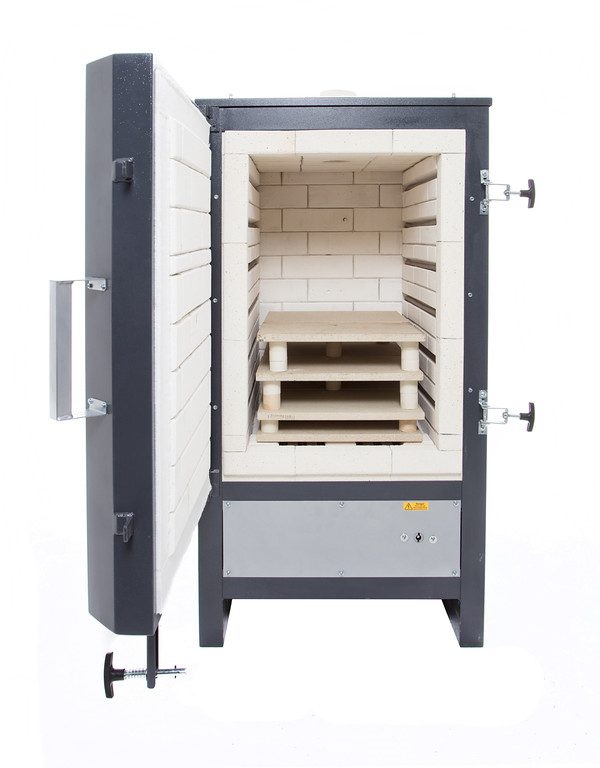

Kilns & FurnacesFalcon 120L Front Load Pottery Kiln

A professional front-loading kiln built for medium-scale studios, colleges, and ceramics programmes that need a spacious front-loading kiln for regular production. 122L of firing space, 1300 degrees C maximum, high-grade spiral wound elements, and Kilns and Furnaces engineering that serious studios rely on.

  • 122L front-loading chamber: 46cm (W) x 46cm (D) x 58cm (H) internal. Sized for medium-scale studios.
  • 1300°C maximum: The full ceramic firing range — earthenware, stoneware, and porcelain — all within the Falcon.
  • Electro-mechanical door interlock: UK-compliant safety system prevents door opening during operation.
  • High-grade spiral wound elements: Fitted to the sidewall and base for even heat across the full chamber volume.
  • TCS2 series controller (optional): 32 programmable firing segments — ramp, target temperature, and hold.
122L capacity1300°C maxFree UK delivery
K&F quality
Door interlock safety
TCS2 controller option
Ā£6,529

Kilns and Furnaces Falcon 120L. 122L front-loading kiln. TCS2 controller optional. Free UK delivery.

Call 01206 648025 for installation advice and our free kiln selection service.

The Right Size for Your Studio

The Falcon 120L is where the range opens up to the larger professional footprint — the external width steps to 72cm and the chamber gains both width (46cm) and height (58cm). 122 litres gives you genuine production capacity for regular weekly firings.

The Falcon range is built around a consistent engineering philosophy across all sizes: highly thermally efficient construction with high-grade spiral wound elements in both the sidewall and the base, a UK-compliant electro-mechanical door interlock, over-temperature kiln lining protection, and ventilation cooling ports as standard. The same quality of construction applies at every size in the range.

The TCS2 series controller is available as an optional addition giving you 32 programmable firing segments for full control over ramp rates, target temperatures, and hold times. Kilns and Furnaces provide a full UK spares service and maintenance contracts for long-term support.

The Falcon 120L Is Right For You If

  • You need 120 litres of front-loading professional capacity
  • You run a college or medium studio
  • You fire large or mixed loads on a regular schedule
  • You want 3-phase supply option alongside single-phase
  • You are stepping up to a larger professional footprint

What Every Falcon Is Built With

Thermally Efficient Construction

Every Falcon kiln is built for efficiency — optimised heat retention and distribution throughout the chamber. High-grade spiral wound elements are fitted to both the sidewall and the base for even heat coverage across the full firing volume. Consistent results, lower electricity consumption per firing cycle, and quality that holds up over thousands of firings.

UK-Compliant Safety Systems

The electro-mechanical door interlock prevents the door from opening during a firing — UK-compliant and engineered to protect both the operator and the work inside. An over-temperature kiln lining protection system provides an additional layer of safety. Ventilation cooling ports allow controlled post-firing cooling and gas venting. An instrument socket is included, compatible with the full Kilns and Furnaces controller range.

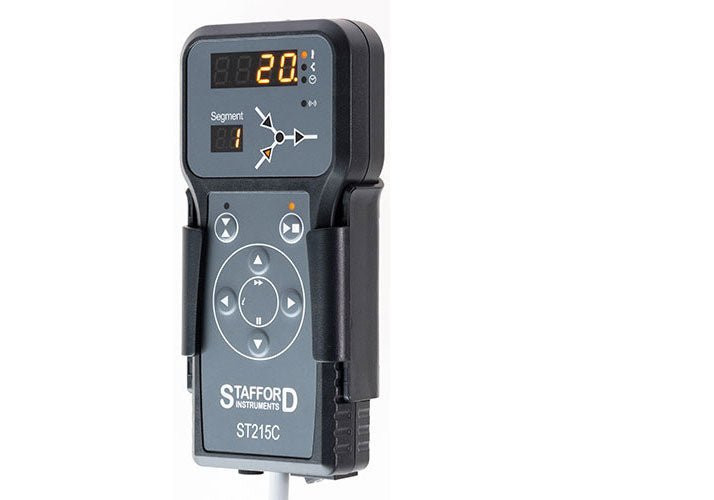

TCS2 Series Digital Controller (Optional)

Optional programmable control over the firing cycle — ramp rates, target temperatures, and hold periods across up to 32 segments. Precise enough for the most technically demanding ceramic applications, clear enough for everyday use. Full UK spares service and maintenance contracts available for every Falcon kiln for long-term operational reliability.

Requires a dedicated 40AA hardwired single-phase supply installed by a qualified electrician. 3-phase option available at 20AA per phase on request at point of order. Call us on 01206 648025 before ordering and we will help confirm your electrical setup is ready.

Technical Specifications - Falcon 120L

Capacity122L
Internal Dimensions46cm (W) x 46cm (D) x 58cm (H)
External Dimensions72cm (W) x 102cm (D) x 137cm (H)
Power8.5kW
SupplySingle phase: 40AA at 220/230V / 3-phase option: 20AA per phase at 380/400V
Weight245kg
Max Temperature1300°C
ElementsHigh-grade spiral wound — sidewall and base
Door SafetyElectro-mechanical interlock (UK compliant)
Over-TemperatureKiln lining protection system standard
ControllerOptional — TCS2 series programmable
SparesFull UK spares service and maintenance contracts

Ready for the Falcon 120L?

Call us on 01206 648025 before ordering — we will confirm the electrical requirements for your studio and make sure the Falcon 120L is the right size for your output. Free kiln selection service available.

Free UK delivery, price match guarantee, and free returns if the kiln is not right.
